1.Introduction of Waste Plastic films washing line
Waste Plastic films washing line is for recycling waste Plastic PP PE films to clean films.
1）Waste plastic films washing line is mainly used for recycling waste PP PE films. Agriculture films etc.
2）To remove sand, labels and waste materials from plastic films.
3）Waste plastic films washing line is fully automatic running.
4）The whole line materials will be stainless steel.
Conveyor--Crusher with high speed friction washer-High speed friction washer-Films washing tank-Screw discharger-High speed friction washer-Films washing tank-Screw discharger-Plastic films squeezing and pelletizer-Fan conveying-Packing silo.
2.Waste Plastic films washing line features:
1）Final moisture from our washing line is about 3%
2）Capacity can be from 300kg/h-1000kg/h.
3）All machines after crusher. All parts contact with materials are 304 stainless steel.
4）Famous brand components applied for this line. Such as NSK or SKF bearing. Siemens contactor. Omron temperature controller. Delta or Fuji inverter. Siemens PLC control.
5）The clean plastic films can use for Plastic films pelletizing line. And it can be widely used in plastic market. Such as Film blowing machine. Plastic bags making machine and so on.
6）The whole Waste plastic films washing line is applied by CE certificate. It’s running with safety protection for workers.
3.Specification of Waste Plastic films washing line
| Waste plastic films washing line | |||
| Capacity | Water consumption(M3/H) | Electric consumption(KW) | Suitable materials |
| 300-500kg/h | 7 | 90 | PP PE films
PP woven bags PP PE flakes |
| 1000kg/h | 12 | 120 | PP PE films
PP woven bags PP PE flakes |
4.Details

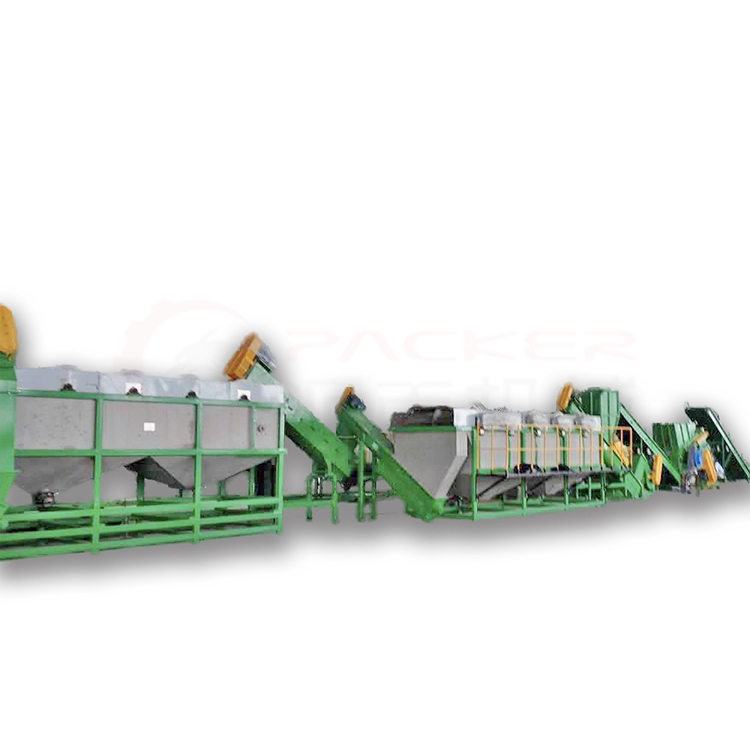

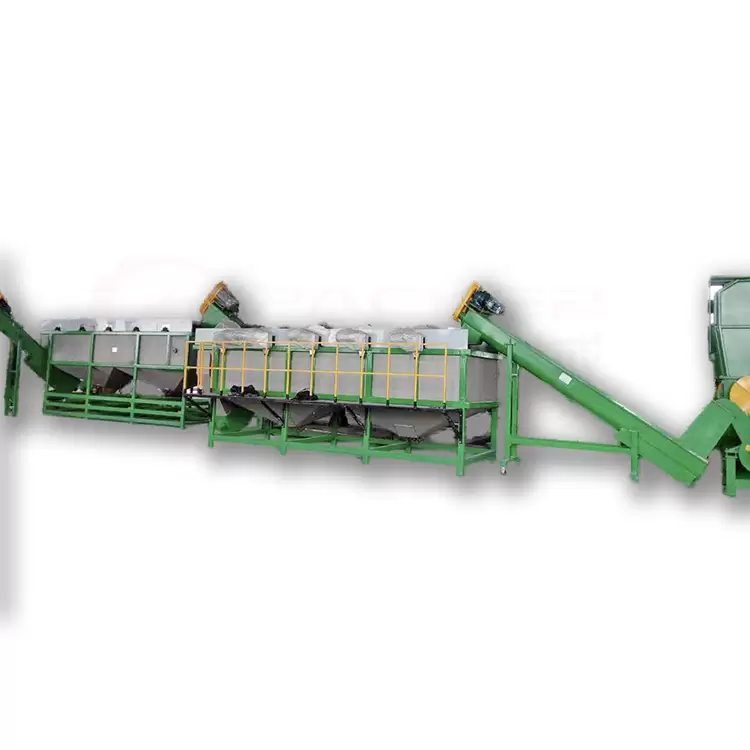

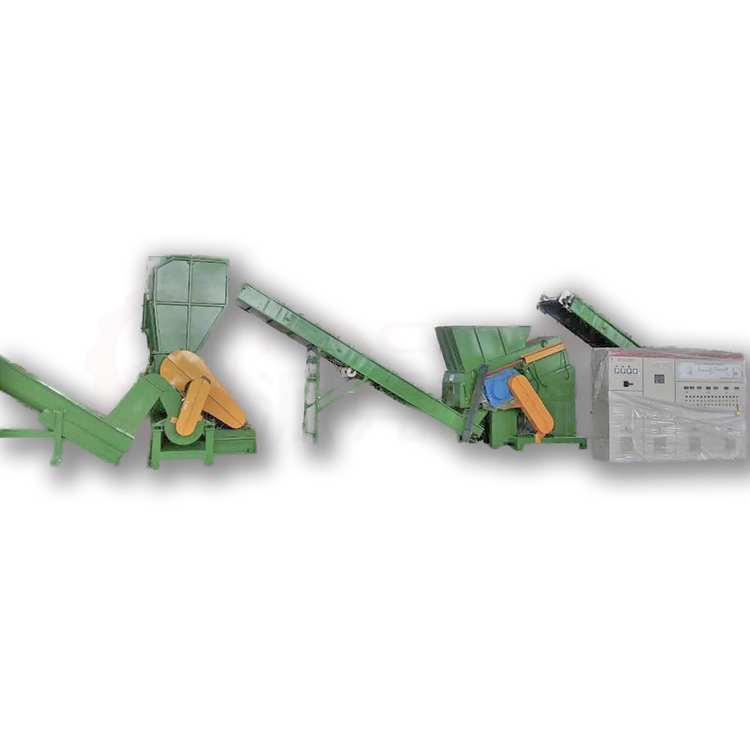

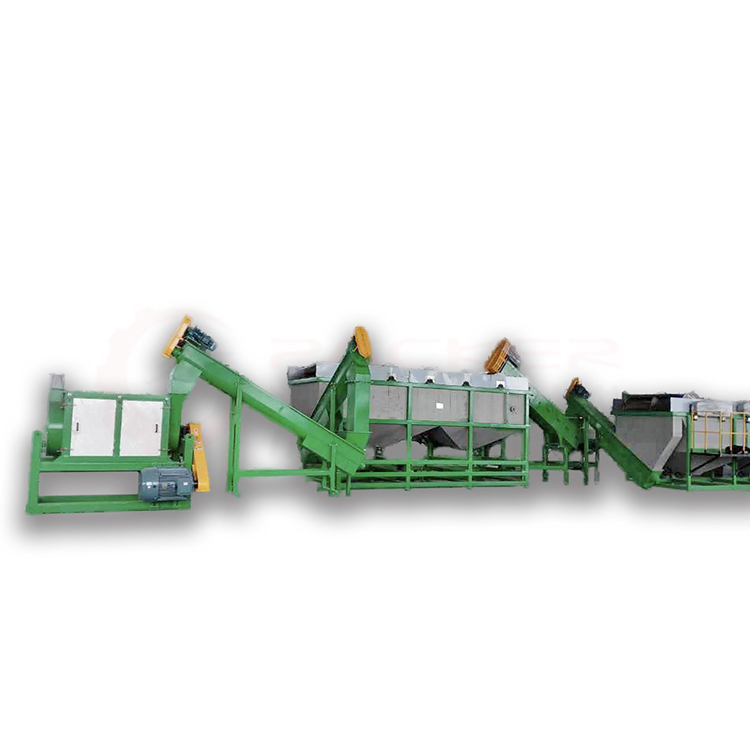

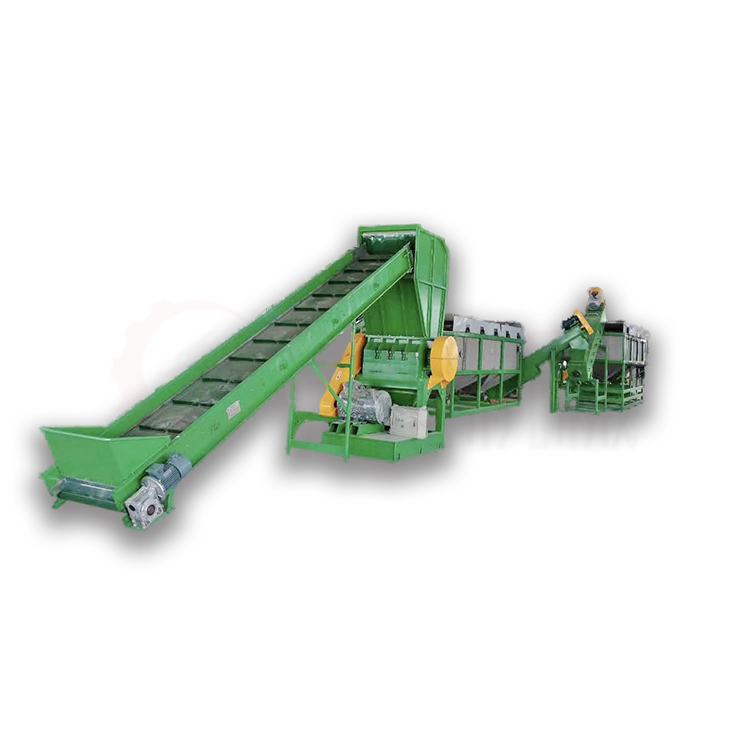

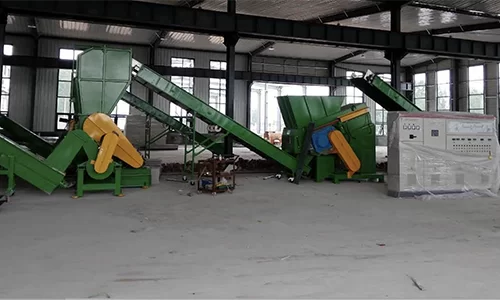

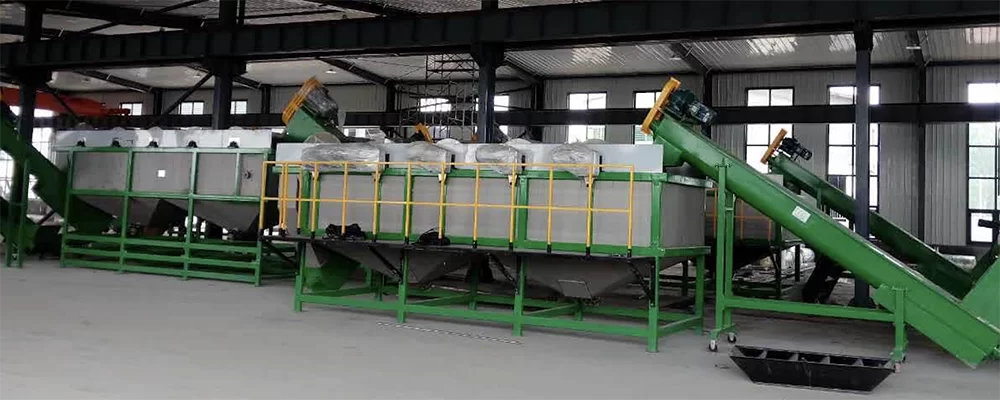

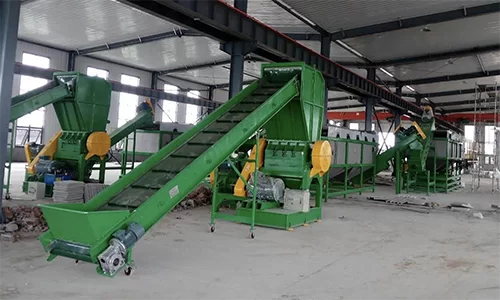

These pictures can better help you understand Waste plastic films washing line.
Deliver,Shipping And Serving
Delivery: 50 days after getting the payment.
Shipping: By sea
Service: 1 year guarantee. After guarantee. We will keep all parts as cost price for our customers. And service for all life.
Servicing:
1.Professional technical team for offering our customers professional suggestions. To get most reasonable technical for the production line.
2.Sales will follow the order and report to customer the production real situation every one week.
24 hours online-service and help customers to solve problems asap. Offer all necessary documents and manual book to customers for helping to installation machines. We also offer technical to be at customer factory for installation and testing. Service whole life for our customers.
